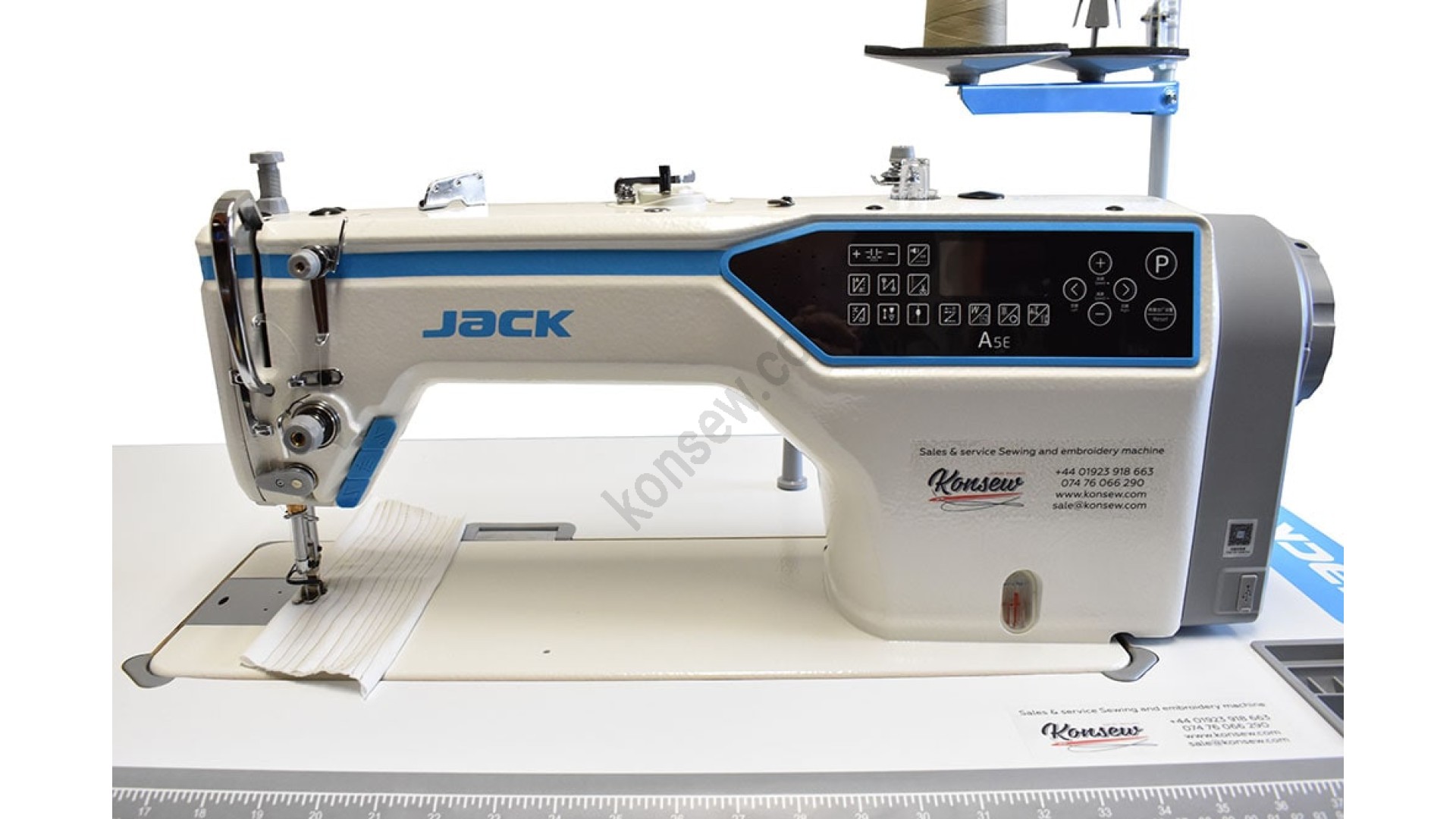

JACK A5 Heavy Duty Direct Drive Semi-Dry Computerized Industrial Sewing Machine
Product Code: jack A5
JACK A5 Direct Drive Semi-Dry Computerized Industrial Sewing Machine.
This machine has been discontinued, they jack have renewed it with the A5E, which can also be found on our website.
Jack is a new leading supplier of direct drive motors.
Their machine always has a unique design, and advanced features to assist you with your sewing.
All of their machines use direct drive motors, meaning the machine doesn't vibrate when you sew. It works very quietly, it saves electricity and helps the environment.
The direct drive motor pushes the needle harder into the material, making it easier to sew and smother as well.
Jack industrial sewing machine is recommended for tailoring, curtain makers, fashion designers, alterations shops, bridal shops, schools, colleges, homes, & dry cleaners.
Suitable for light, medium & heavy work with fabrics such as cotton, leather, silk, synthetics plus more.
This machine comes complete with a head, motor, stand, table, and cotton stand.
JACK A5 brand new sewing machine with direct drive and automatic thread trimmer.
A direct drive motor has been fitted onto the right-hand side of the sewing machine, with no drive belts, offering power savings over conventional sewing machine motors.
Auto lockstitch avoids loose stitch, no need to cut remaining thread, save time and cost.
Automatic alarm when oil is less or too much, avoid machine stuck or oil leakage. Also equipped with one button reset function and a voice guide.
With the Carbonado needle bar and thread take-up lever, lubricate with solid grease to keep the fabric clean; Sealing oil pan to avoid dust getting inside keep better and clean lubrication.
Including a built-in LED needle light illuminating the sewing area.
Built-in Operation Panel
The JACK A5 incorporates a user-friendly operation panel on the machine head. In addition to the often-used start back-tack and end back-tack.
A top-mounted bobbin winder is built in for easy winding and changeover of spare bobbins.
A multi-led "needle light" is provided, which is positioned to illuminate the needle and presser foot area
USB port for charging mobile phones, connecting the fan, or can be used to update the software.
Each button and each operation have a voice guide
Adding stitch, sewing back, and the LED lights - everything at hand.
All connectors and plugs are located in a safe manner.
This machine is offered with a 12 month back to base Guarantee
|Accessories||Needles Bobbins Oil Manual|
|Application||From light to medium-weight materials|
|Automatic reverse feed function||Yes|
|Distance from needle to machine arm||261mm|
|Feed Dog||3-row , 4- row|
|Light||LED needle light|
|Lubrication||Semi-Dry Automatic-lubricating full-rotary hook|
|Manufacturer’s guarantee||This machine is offered with a 12 month back to base Guarantee|
|Max lift of the presser foot||By hand: 5.5mm By knee: 13mm|
|Max stitch length||4,2mm|
|Needle bar stroke||30.7mm|
|Needle position||Yes,Up & Down Function|
|Needle system1||DB×1 (#14) #9~#18 / 134(Nm90)|
|Power requirement||Single-phase 230V~240V 13 amp (can be used at home)|
|Table top dimensions||L120cm x W54cm Height Adjustable from 70cm to 86cm|
|Thread trimming mechanism||Yes|
|USB port||For charging mobile phones, connect the fan or can be used to update the software|
|Weight of the machine head||32 kg|
|Max Sewing Speed (sti/min)||4,500 sti/min|
